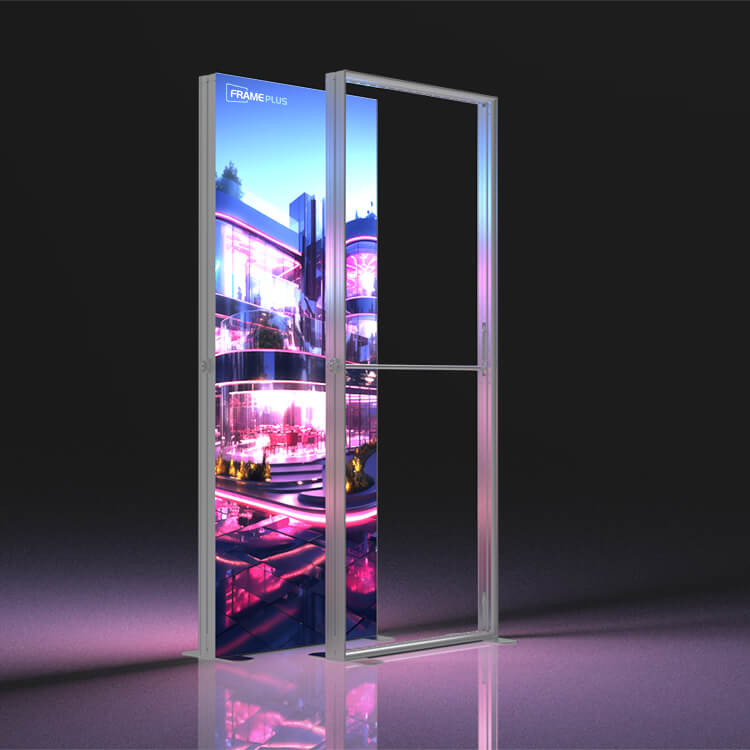

850mm LED Lightbox for Compact Trade Show Displays
The Frame Plus 850mm LED lightbox is a slim illuminated display designed for exhibition entrances, reception points, retail promotions and booth areas where floor width is limited. Its narrow format provides a clear vertical branding surface without occupying the space required by a wider exhibition backdrop.
The display can present a logo, product image, short campaign message or directional information. It works particularly well beside a reception counter, at the end of a back wall or near an aisle where visitors approach from a defined direction.
To compare this model with wider display formats, browse the complete range of freestanding LED lightboxes.
When Is an 850mm Lightbox the Right Size?
The 850mm width is intended for situations where efficient use of floor space is more important than creating a full booth backdrop. It provides more visual presence than a conventional non-illuminated sign while remaining suitable for compact exhibition layouts.
Common positions include:
- Beside an exhibition stand entrance
- Behind or next to a reception counter
- At the edge of a product demonstration area
- Along a visitor walkway
- Within a retail or showroom promotion
- As a supporting display beside a larger backlit wall
This model is usually better suited to one focused message than several blocks of detailed information. Large logos, a strong product image and short text are easier to recognise than a crowded layout on an 850mm-wide graphic.
850mm or 1000mm LED Lightbox?
Choose the 850mm version when the available footprint is narrow or when the lightbox will function as an entrance panel, directional display or supporting visual.
The 1000mm SEG lightbox provides an additional 150mm of graphic width. That extra space can be useful for wider product photography, longer headings or a more complete standalone message.
Both widths are available in 2000mm, 2250mm and 2500mm heights. The correct choice should therefore be based on both the available floor width and the proportions of the intended artwork.
Three Heights with Corresponding Packed Weights
The 850mm LED lightbox is available in three fixed height options. Select the required height when ordering; the product is not a height-adjustable telescopic display.
- 850 × 2000mm / 14.5kg packed weight / 1180 × 180 × 400mm package
- 850 × 2250mm / 15kg packed weight / 1180 × 180 × 400mm package
- 850 × 2500mm / 15.9kg packed weight / 1180 × 180 × 400mm package
The 2000mm version suits venues with lower height restrictions and close-range viewing. The 2250mm option provides additional vertical presence for general exhibition use, while the 2500mm version offers the largest graphic area for visibility across a busier venue.
The separated components are supplied in a transport case with protective foam inserts for storage and repeated event use.
Single-Sided or Double-Sided Graphics
The position of the lightbox determines which graphic option is more appropriate.
- Single-sided / 1 printed SEG graphic + 1 blackback graphic
- Double-sided / 2 printed SEG graphics
Choose the single-sided version when the display is positioned against a wall, beside a counter or at the edge of an exhibition stand where visitors mainly see the front.
The double-sided configuration is more suitable for open spaces, central walkways and entrance areas where visitors can approach from two directions. Each side can carry the same artwork or communicate a different message.
The silicone edge of the polyester graphic fits into the frame channel to create a smooth, tensioned surface. When the campaign changes, a correctly sized replacement SEG graphic can update the display without replacing the reusable frame.
White Composite Frame with Tool-Free Assembly
The lightbox uses separate white composite frame sections connected through a push-button assembly system. Numbered components help identify the correct position of each section, and no specialist installation tools are required.
After familiarisation, typical installation takes approximately 10 minutes for one person. Allow additional time for the first setup and when fitting a newly printed graphic.
The assembled display has a depth of approximately 400mm with the stabilising feet fitted. Confirm that the intended position leaves enough space for the feet, power cable and surrounding visitor movement.
LED Illumination for a Narrow Graphic Surface
Integrated OSRAM LED light sources illuminate the SEG fabric from within the frame. The 6500K daylight colour temperature provides a clear, neutral appearance for logos, product photography and promotional artwork.
- Approximately 90W power consumption
- 15 OSRAM LED lights per one-metre section
- AC 100–240V, 50/60Hz input
- DC 24V output
- 2m power cable
- Up to 50,000 hours rated LED operating life
- Indoor use only
The 50,000-hour figure refers to the rated operating life of the LED light source under appropriate conditions. It does not mean that every electrical or structural component carries the same operating-life guarantee.
Artwork Planning for an 850mm-Wide Graphic
Artwork must be prepared for the selected 850 × 2000mm, 850 × 2250mm or 850 × 2500mm configuration. A file created for one height should not be used for another height without adjusting the document dimensions and layout.
Because the graphic is relatively narrow, avoid filling it with long paragraphs or several competing messages. Keep the primary logo or product image within the main viewing area and consider whether furniture may obscure the lower portion of the display.
Frame Plus checks supplied artwork for dimensions and basic production suitability before printing. Customers remain responsible for the final text, design and image quality.
Use It Independently or Within a Larger Booth
The 850mm LED lightbox can function as a standalone illuminated panel or support a larger exhibition layout. It is suitable for adding a focused branding surface near the entrance while a wider lightbox forms the main backdrop.
An optional lightbox with TV holder is also available for projects that need to combine an 850mm backlit visual with compatible digital-screen support. Always confirm the permitted screen size and load capacity before ordering.
If the project requires several coordinated walls, counters, arches or enclosed storage, compare the available complete modular exhibition stands instead of treating one narrow lightbox as a complete booth system.
Why Choose the 850mm Configuration?
- Narrow footprint for compact exhibition areas
- Three fixed height options for different venues
- White composite frame with tool-free connections
- Single-sided and double-sided SEG graphic options
- Approximately 10-minute setup after familiarisation
- Replaceable graphics for new campaigns
- Transport case with protective foam inserts
- Professional artwork checks before production
- Estimated delivery in 5–7 business days
- One-year warranty for professional indoor use
Choose the 850mm lightbox when the priority is a focused illuminated message within a limited floor width. Select the 1000mm version when the artwork requires additional horizontal space, or a wider model when the display must become the principal exhibition backdrop.
